Moldex3D Designer develops a complete series of preprocessing tools, such as an automatic mesh generator and intelligent modeling wizards. These help you create true 3D mesh models and set up various simulation conditions, including gates, runners, cooling channels, etc. This efficient and user-friendly software product lets you verify and optimize design changes with greater flexibility.

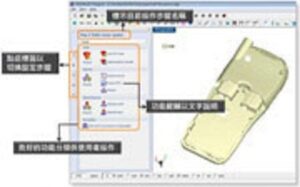

The easy-to-navigate user interface offers a consistent logic to help you access the simulation workflow step by step. It improves the functionality of Moldex3D Designer while shortening your learning curve. You can complete the entire preprocessing preparation stage with a few clicks.
Through its Gate Wizard function, Moldex3D Designer provides various gate types, such as pin gate, sprue gate, edge gate, fan gate, etc. Use the gate-aware Runner Wizard to build single or multiple gates quickly and consecutively. You can also apply Gate Location Advisor to set up one or more appropriate gate locations according to the geometry of your manufactured plastic parts.
The Runner Wizard supports different runner types, including runner cross-sections, to describe real runner geometry with true 3D solid mesh. It even allows using curve objects as runners and constructing a complete runner system with mixed STL topology and runner lines.

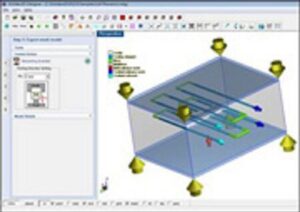

Moldex3D Designer’s Cooling Wizard lets you create a complete cooling system for simulations. Its cooling channel templates offer added support when setting up essential cooling channels. They also help you save time when reconstructing previously designed cooling systems. You can even save edited cooling channels as your proprietary templates or the default template you will directly use for your next design.
With its superior 3D mesh engine, Moldex3D Designer generates 3D mesh for part and mold design more effectively and efficiently. You can work directly through CAD models to create true 3D simulations, sparing you from hours of complicated mesh preparation. Its advanced functionalities also allow you to import, patch, and edit CAD models for accurate injection molding analyses.
The meshing kernels in Moldex3D Designer will automatically detect and fully utilize your modern multicore CPU to speed up meshing without changing any additional settings. This helps you save time on mesh preparation.
Contact us today for more information about our plastics engineering software.
